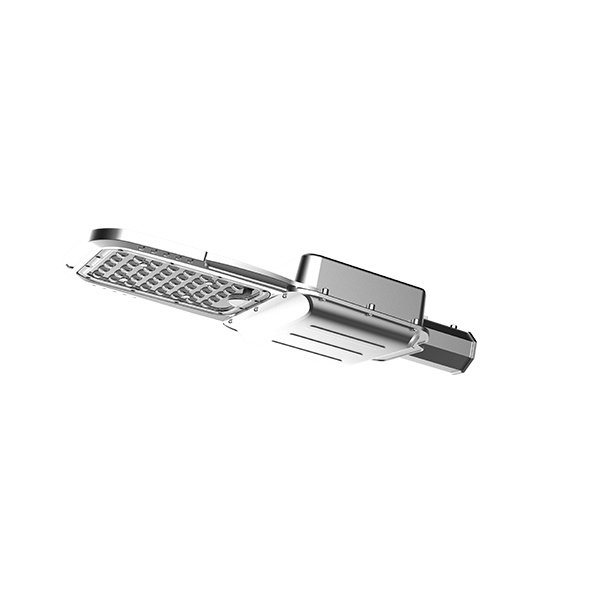

لامپ های فضای باز جاده ای خیابان نور شهر با انرژی خورشیدی همه در دو
- JEEYEE
- ساخت چین
- 14 روز
- 10000000 عدد در سال
چراغ خیابان خورشیدی همه کاره ما برای روشنایی خیابان اصلی و بزرگراه، با باتری لیتیومی و کنترلر تعبیه شده در داخل لامپ طراحی شده است. این دارای بزرگترین ظرفیت باتری لیتیومی داخلی است، می تواند 12 تا 60 ساعت و 100٪ روشنایی در 10000 ~ 20000 لومن (80 وات ~ 200 وات) خروجی LED کار کند، و می تواند 3 تا 100 دقیقه در طول روز کار کند.
Product Feature:
Our All-In-Two Solar Street Light is designed for Main Street and Highway Lighting, with lithium battery and controller built inside the lamp. It has the biggest built-in lithium battery capacity, can work 12~60 hours 100% brightness at 10000~20000 lumens (80W~200W) LED Output, and can still work after more than 3 Continuous rainy days.
Battery, LED lighting and controller are integrated together as one unit.
Solar Panel can be vertically tilted to its optimized position for the highest charging efficiency.
Lithium Battery Capacity is up to 20000WH (LiFePO4 Lithium battery)
Adopts Japan NICHIA 5050 Led chips LED Modules, achieve more than up to 200 lumen/watt.
Smart PIR Motion Detection, telecontroller is optional function.
The intelligent integrated design with NB, MPPT etc remote control system makes the installation, maintenance and monitor much easier, and no cable connections needed.
Product Details:
Various Lighting Distributions
Separate Solar Panel
It integrates LED lighting source, lithium battery and controller with lamp fixture as one part, and the solar panel is separated as another part. Thus, we can increase its capacity and adjust its tilt angle freely for best charging efficiency, and generate enough energy to support lighting for longer working hours at high power without motion sensor.
Perfect Lighting Effect
Japan NICHIA LED make the lamp achieve an unmatched lighting effect.
IP67 LED Module Lighting Source
IP LED modules with heat sink adopted as the lighting source, easy for maintenance, replacement and have long life time.
Up to 200 LM/W Lighting Efficiency
50% more illumination area
80% better illumination uniformity
Led Module Options
We offer LED module model options with different wattage ranges and lighting distributions for various applications.
Survive extreme environment
PARAMETERS
Model No. | JYSLT092 |
Lighting Parameters | |
Lamp Power | 30W-120W |
Luminous Flux | Up to 16000 lumens |
Color Temperature | 3000K~ 6000K |
Optical Distribution | Bat Wing, TypeⅡ |
Beam Angle | 150° |
CRI | |
Lithium Battery Parameters | |
Lithium Battery Types | lithium iron phosphate (LiFePO4) battery / Soft Pack Li-ion Battery |
LiFePO4 Lithium Battery | 1229WH (LiFePO4 Lithium Battery) / 1665WH (Li-ion Lithium battery) |
Life Span | |
Controller Parameters | |
Controller | NB controller/ MPPT controller |
System Voltage | 12V/24V |
Max. Charging Current | 5A/10A/15A/20A |
PIR Sensor | Optional |
Protection Functions | Short-circuit Protection, Reverse Discharging Protection, Polarity Protection, Lightning Protection, Low Voltage load cut-off protection, Over-charge Protection |
Physical Parameters | |
Lamp Fixture | High-Pressure Die-Casting Aluminum. Corrosion Resistant |
Lamp Arm Adaptor | Diameter 55-65mm |
Dimension of Product | 720*340*135mm |
Working Mode | |
Working Hours per Night | From Dusk to Dawn (Adjustable) |
Continues Rainy Days Backup | |
Environment Requirements | |
Charge Temperature | 0-55℃ |
Discharge Temperature | -20-55℃ |
Storage Temperature | 0-50℃ |
Installation Recommendations | |
Installation Height | 6-12 m |
Spacing Distance | 20-60 m |
WORKING MODE
12 Lighting hours/Night + Automatic Time Control.
The lights turn on automatically at dusk, automatic brightness adjustment at night,the lights turn off automatically at dawn.
3 Consecutive Rainy & Cloudy Days
Due to perfect power management system, the solar light can still work after more than 3 consecutive rainy and cloudy days
INSTALLATION
